TWO-POST AUTOMOTIVE LIFT
The Hofmann® 16k 2-Post lift offers an impressive lifting capability of up to 16,000 pounds, empowering technicians to effortlessly elevate even the most substantial vehicles. Its engineering prowess distinguishes the 16k 2-Post lift as an indispensable resource for shops that routinely undertake the maintenance and servicing of large or heavy-duty vehicles.
For more information, check out our brochure.

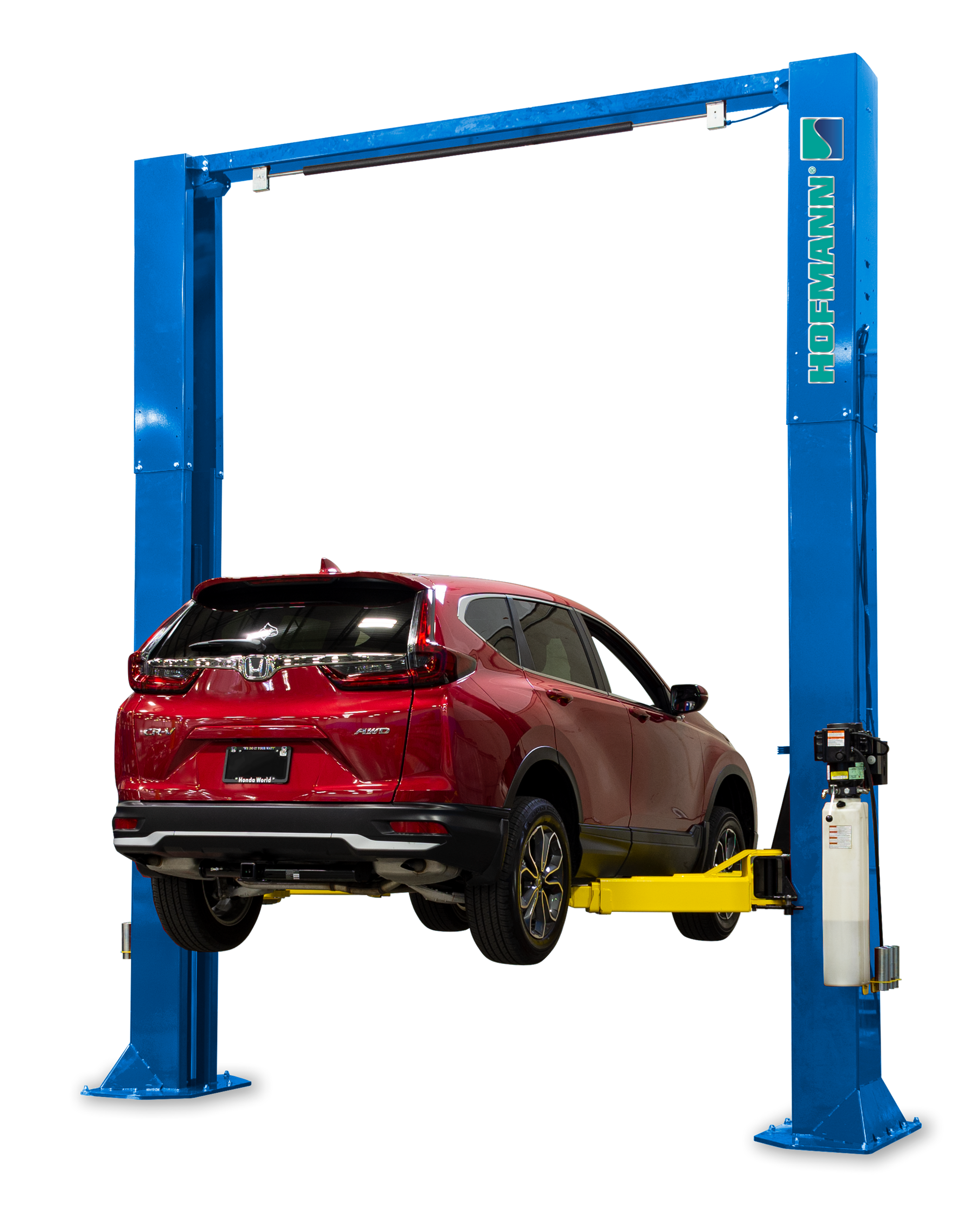

Heavy Duty 16K Two-Post Lift
Overall Width
155"/161"/167" | 394/409/424cm
Power Supply
208-230V 60Hz 3HP / 2.2kW
Shipping Weight Extended
2,500 lbs. | 1,134 kg
Shipping Weight Standard
2,500 lbs. | 1,134 kg
Air Supply Required
90-120 PSI | 6-8 bar
Configuration
Symmetric
Lifting Capacity
16,000 lbs. | 7,257 kg
Lifting Time
62 seconds
Max. Lifting Height
76"-82" | 193-208cm
Minimum Recommended Bay Size WxL Extended
15'x28' | 457x853cm
Minimum Recommended Bay Size WxL Standard
15'x28' | 457x853cm
Overall Height Extended
186"/192"/198" | 472/488/503cm
Overall Height Standard
162"/168"/174" | 411/427/442cm
