TWO-POST AUTOMOTIVE LIFT
The 12k 2-Post lift represents the pinnacle of lifting technology, offering a multitude of exceptional features that include symmetrical lifting capabilities, extended-reaching front and rear arms, adjustable insert screw lifting pads and a cushioned overhead shut-off bar. With the potential for augmenting functionality through a range of optional accessories, the 12k 2-Post lift presents the opportunity to effectively boost shop productivity even further.
For more information, check out our brochure.

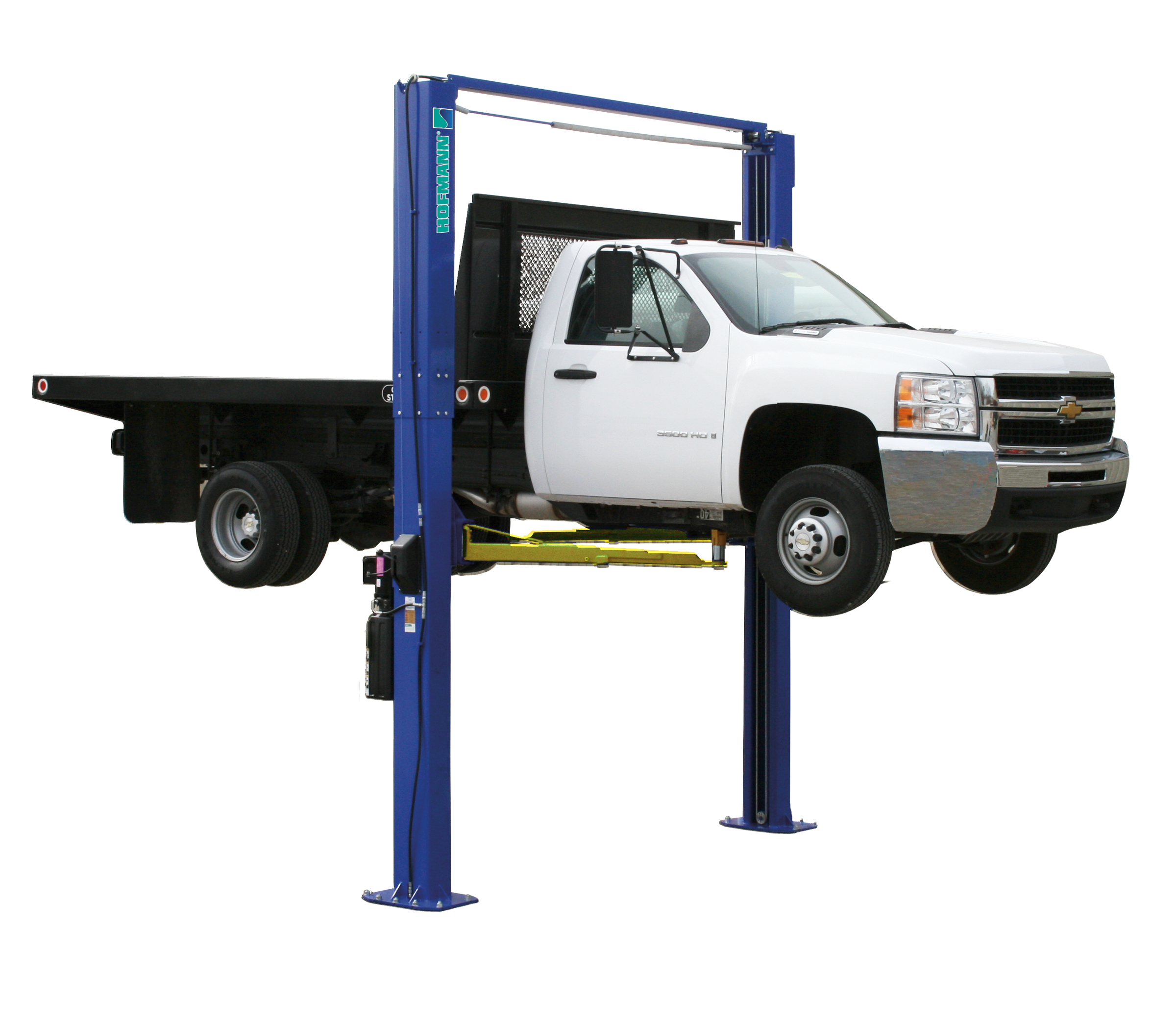

12K Two-Post Symmetric Lift
Part Number EELR738A Air Supply Required
90-120 PSI | 6-8 BAR
Configuration
Symmetric
Lifting Capacity
12,000 lbs. | 5,443 kg
Lifting Time
61 seconds
Max. Lifting Height
78" | 198cm
Minimum Recommended Bay Size WxL Extended
14'x24' | 427x732cm
Minimum Recommended Bay Size WxL Standard
14'x24' | 427x732cm
Overall Height Extended
190"-199" | 483-505cm
Overall Height Standard
166"-175" | 421-445cm
Overall Width
140" | 356cm
Power Supply
208-230V 60Hz 1Ph 30A 2HP / 1.5kW
